Generating OpenGraph images with Astro

Providing OpenGraph images for websites enables other tools to render rich previews when your content is shared.

I used to manually add an image for each of my posts and embedded it using the astro-seo integrations. This approach works well in general, but I wanted to have a bit more branding with these images. Of course, I could have put some more effort into creating these images, using a Photoshop template and manually adding titles on top but, well, that would be pretty boring, right?

With Astro, it’s possible to create Static File Endpoints, which I use to create my RSS feed for example. I tried to use this to create an image endpoint instead, utilizing the @vercel/og package to generate an image response for a given JSX construct.

I’m using Content Collections for my gallery and thoughts areas. So far, my pages structure looked like this:

/thoughts/index.astro
/thoughts/[...slug].astro

I moved the detail page to a subfolder and renamed it to index.astro, so existing URLs for post will remain working. Next to this, I created a new file for the image. The new structure now looks like this:

/thoughts/index.astro
/thoughts/[slug]/index.astro
/thoughts/[slug]/og.png.ts

To get these image generated for every post in the thoughts collection, I’m utilizing the getStaticPaths function, Astro provides:

import { type CollectionEntry, getCollection } from "astro:content";

export async function getStaticPaths() {
  const thoughts = await getCollection("thoughts");
  return thoughts.map((thought) => ({
    params: { slug: thought.slug },
    props: { thought },
  }));
}

Now comes the fun part - generating an image. We add a GET handler for this endpoint, receiving the individual post data via props. Inside, we use the @vercel/og package, to create an ImageResponse. Sadly Astro does not support JSX inside these endpoints, so I used the object syntax for React content:

export async function GET({ props }: Props) {
  const { thought } = props;

  const html = {
    type: "div",
    props: {
      children: "Hello World",
      tw: "w-full h-full flex items-center justify-center bg-white",
    }
  };

  return new ImageResponse(html, {
    width: 1200,
    height: 630
  });
}

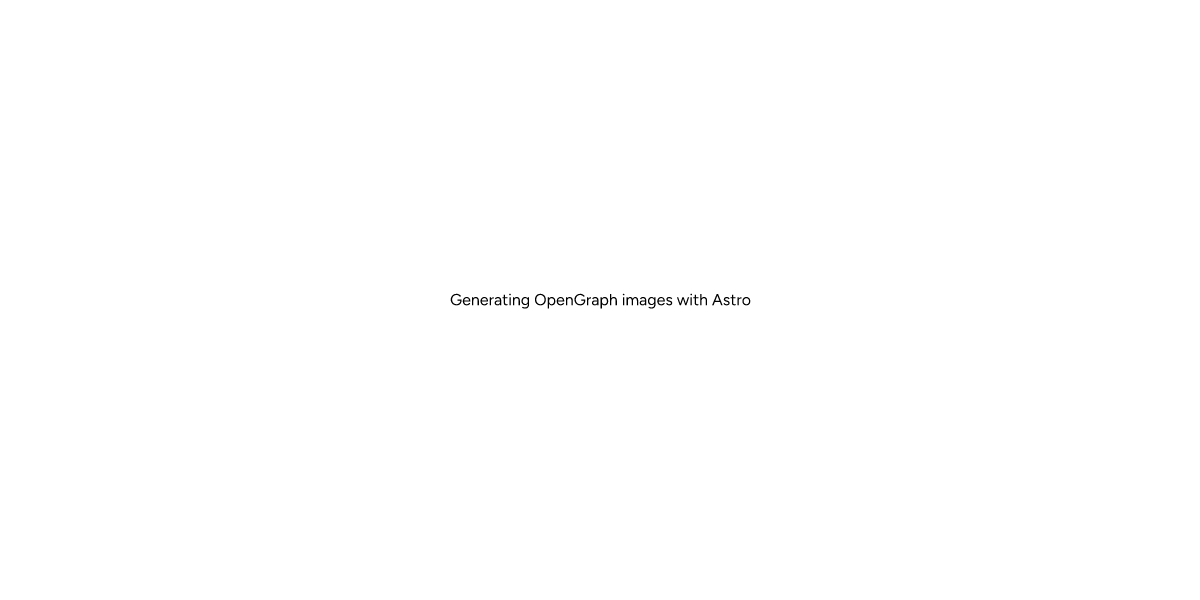

Using the tw prop, it’s even possible to utilize Tailwind CSS for styling the output. This is the result:

Here is an extended example, using custom fonts and images:

import fs from "fs";
import path from "path";
import logo from "./logo.png";

const loadImage = (src: string): Buffer | undefined => {
  return fs.readFileSync(
    process.env.NODE_ENV === "development"
      ? path.resolve(src.replace(/\?.*/, "").replace("/@fs", ""))
      : path.resolve(src.replace("/", "dist/")),
  );
};

export async function GET({ props }: Props) {
  const { thought } = props;

  const FigtreeRegular = fs.readFileSync(
    path.resolve("./public/fonts/Figtree-Regular.ttf"),
  );

  const logoImage = loadImage(logo?.src);

  const html = {
    type: "div",
    props: {
      tw: "w-full h-full flex flex-col items-center justify-center bg-white",
      children: [
        {
          type: "div",
          props: {
            children: thought.data.title,
            style: {
              fontFamily: "Figtree Regular"
            }
          }
        },
        {
          type: "img",
          props: {
            src: logoImage.buffer
          }
        }
      ]
    }
  };

  return new ImageResponse(html, {
    width: 1200,
    height: 630,
    fonts: [{
      name: "Figtree Regular",
      data: FigtreeRegular.buffer,
      style: "normal",
    }]
  });
}

From there, it’s only a matter of creativity to come up with a nice design. Finally, add this new image path as OG image.
